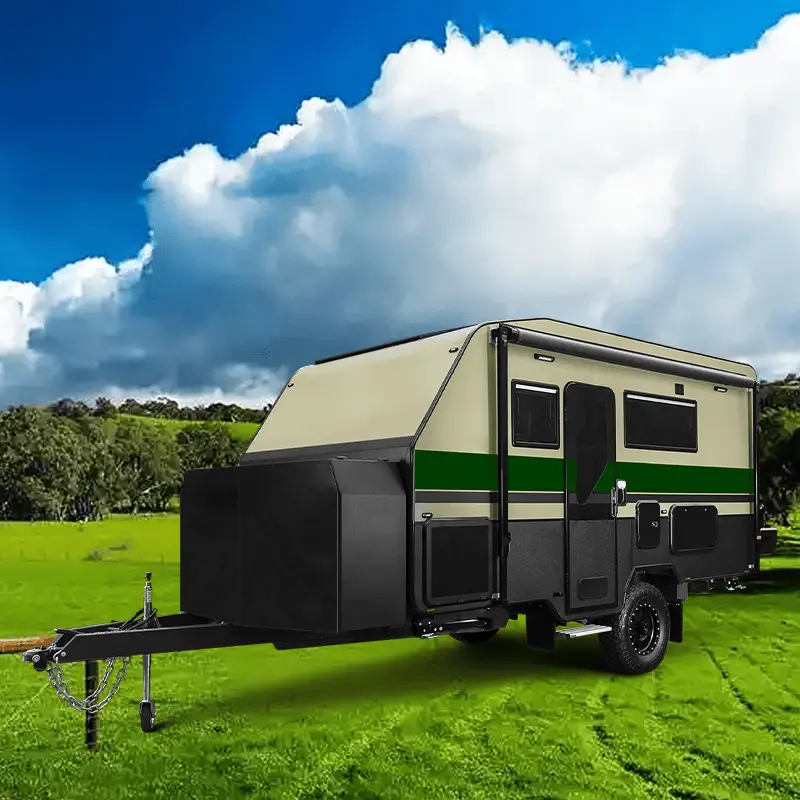

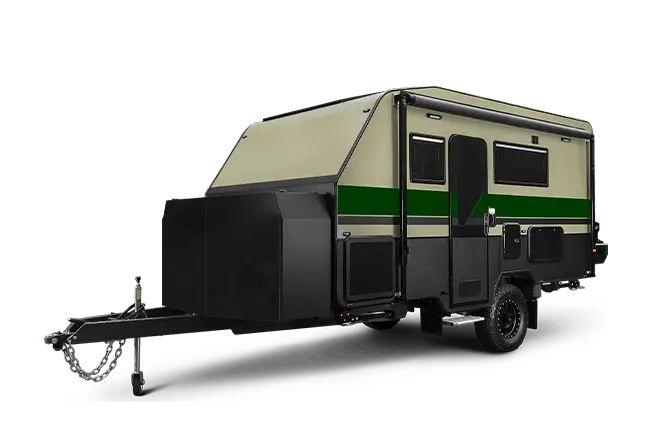

Single Axle Off Road Caravan
Tough, compact, and built for adventure.
Available in 14FT–16FT sizes, this lightweight off road caravan. Smart interior layouts comfortably accommodate 2 to 5 people—perfect for couples, small families, or solo adventurers. While the reinforced chassis and independent suspension let you tackle any terrain with confidence. Explore nature’s wild beauty—wherever the road takes you.
Highlights
Features for ultimate travel comfort
Interior
Reasonable layout for travel
FLOORPLANS
Ranging in size from 14' to 16', available in 5 different floorplans. Please choose the layout and size that best suits your needs.
Tare Mass: 2100(KG)
Internal Length: 4300(MM)
Total Length (Tow Ball to Spare Tyre): 6600(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3100(MM)
Internal Height: 1970(MM)

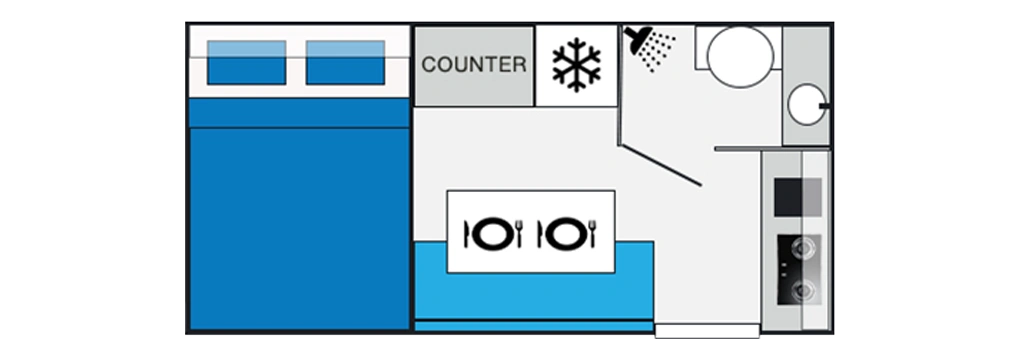

14FT-Couple
From 154290 CNY (22524 USD)
Tare Mass: 2100(KG)
Internal Length: 4300(MM)
Total Length (Tow Ball to Spare Tyre): 6600(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3100(MM)
Internal Height: 1970(MM)

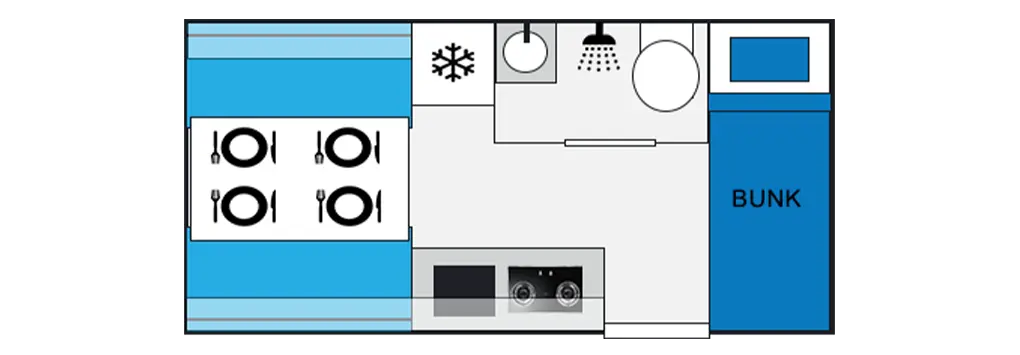

14FT-Family
From 154290 CNY (22524 USD)
Tare Mass: 2250(KG)
Internal Length: 4600(MM)
Total Length (Tow Ball to Spare Tyre): 6900(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3100(MM)
Internal Height: 1970(MM)

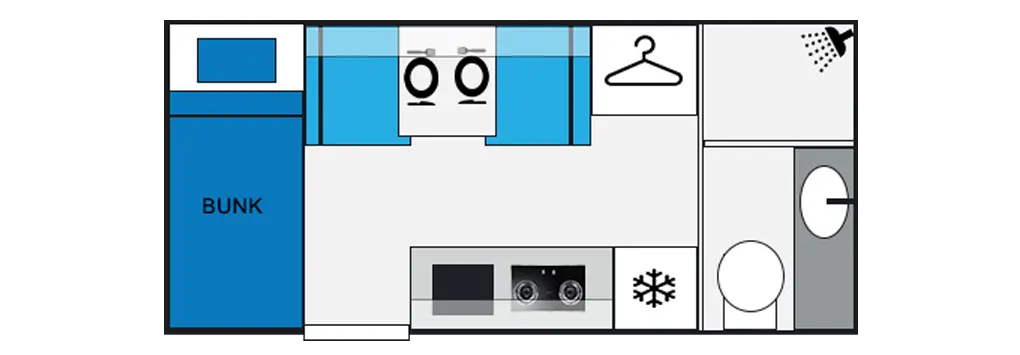

15FT-Family
From 179380 CNY (25237 USD)
Tare Mass: 2300(KG)
Internal Length: 4900(MM)
Total Length (Tow Ball to Spare Tyre): 7200(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3100(MM)
Internal Height: 1970(MM)

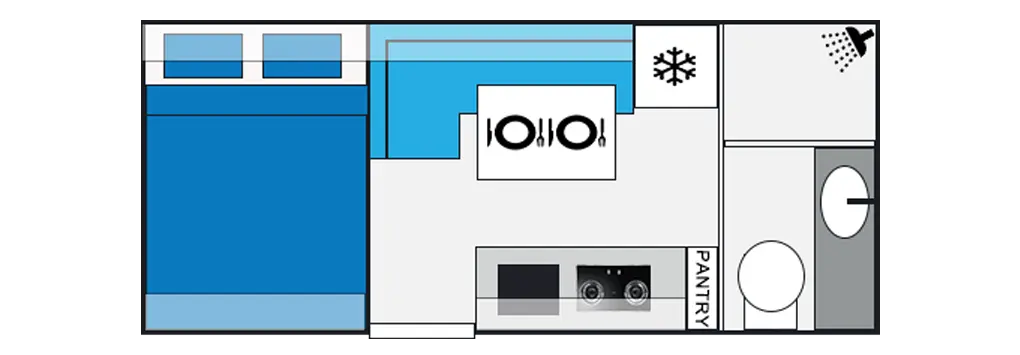

16FT-Couple
From 179380 CNY (26187 USD)
Tare Mass: 2300(KG)
Internal Length: 4900(MM)
Total Length (Tow Ball to Spare Tyre): 7200(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3100(MM)
Internal Height: 1970(MM)

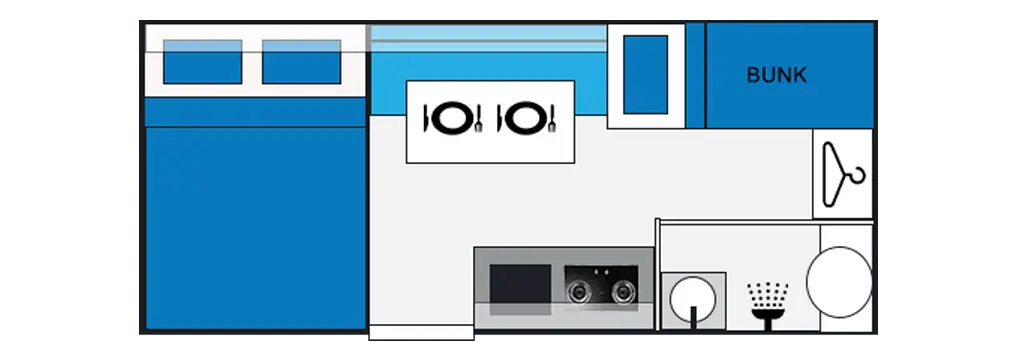

16FT-Family
From 179380 CNY (26187 USD)
Specifications
Be prepared to break boundaries with materials, finishes and technology that lead the next frontier in premium caravanning.
CHASSIS
- 150MM X 50MM – Q355 Galvanised Steel RHS For Towbar
- Proven High-strength Galvanized Chassis
- 50Mm Ball Coupling
- Jockey Wheel
- 16 X 7.5 6/139.7 Aluminium Alloy Wheels Fitted With 265/75 R16 Goodride Radial All Terrain Tyres
- Independent Coil Spring Trailing Arm Suspension With 2 X Shock Absorbers On Each Arm
- 12″ Electromagnetic Brakes With Handbrake And Drawbar Mounted Emergency Breakaway System
- 4 X Heavy Duty Lockable And Adjustable Drop Down Stabiliser Legs
- 1500Kg High-Lift Scissor Jack & Integrated Jacking Points
- Aluminium Entry Step
EXTERIOR
- Large Awning
- Flat Top Toolbox On A-Frame
- Tunnel Storage
- 2 X 8.5KG Gas Cylinder Holders
- 2X80L Fresh Water + 1X120L Grey Water
- 12V Electric Marine Diaphragm Pump Water Delivery

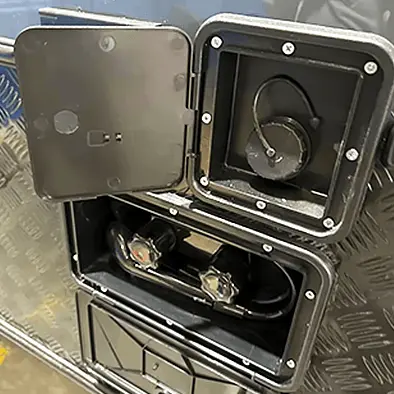

- City Quick-Connect Pressure Reducing Water Injection Port
- Wall-Mounted Drop-Down Servery Table
- Front Mounted LED Light Bar + Awning Under Light
- Marine Grade Composite Caravan Body Including Steel Frame Construction
- Aluminium Pattern Protection Side Skirting 75Cm
INTERIOR
- Indoor Modern Style Laminate Bench And Countertop, With Matte Black Sink And Faucet
- Fiberglass Material Enclosed Shower Room
- Tinted Ultra-Thin Double-Layer Acrylic Glass Window And Double-Layer Cassette Blinds With Screens And Blackout Curtains
- Bathroom With 12V Exhaust Fan And LED Lighting
- High-Quality Leather Lounge Seating
- High-Quality Environmentally Friendly Vinyl Floor
- Top Cabinet With Strip Lights
- Toughened Residential Grade Hinge Assembly
APPLIANCES
- Dometic Roof-Mounted Air Conditioner With Heating
- FOGGTI Gas Instant Water Heater
- 148L High-end 12V Compressor Refrigerator
- Built-In 20L 800W Microwave
- Hot/Cold External Shower
- 2.4GHZ Digital Wireless Rear View Camera + 7″ Portable Monitor
- Stereo Head Unit With Internal & External Speakers
- 12V Range Hood
- Induction Cooktop
- 12V Sirocco Fans
ELECTRICAL

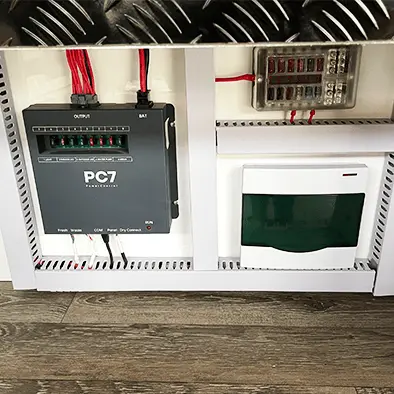

- Intelligent Integrated Control System
- 400W Solar Panels
- MPPT Solar Control
- Battery Monitor + 200AH Maintenance-Free Battery
- 12V 3000W Pure Sine Wave Inverter, Integrated Inverter Charging Machine
- Internal 12V LED Lighting Throughout
- External 12V LED Lighting Throughout, Awning Side White And Yellow (Bug Light) Wall Lighting, Position Markers, Indicator & Stop/Tail Lights
- 7-Pin Flat Trailer Connector
- 12V Accessory Sockets
- Dual USB Charging Ports (1A & 2A Split)
- TV Outlet
- 240V GPOs
- Reading Light With USB Charging Function
Optional
- Spare Tire + Rear Bumper Bracket
- 22-Inch Smart TV + Bracket + Antenna
- Indoor Two Burner Stove With Glass Cover
- Dometic 4-Burner Stove + Single-Layer Oven
- Outdoor Pull-Out Kitchen (2-Burner Stove + 1 Sink)
- Australian Standard Gas Pipeline (Optional For Australia And New Zealand)
- 35L Outdoor Refrigerator
- Dometic Dust Removal Fan
- 3KG Washing Machine
- Skylight
- 2KW Diesel Heater
- 400AH Life Pro4 Li Battery
- DC-DC Charging + MPPT Integrated Machine

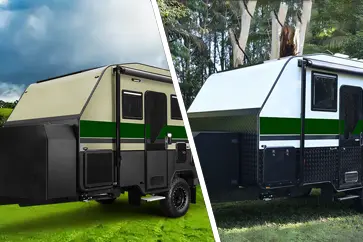

Custom Your Own Caravan
