Triple Axle Off Road Caravan

    Spacious and secure – ideal for families chasing off-grid freedom

    A triple axle off-road caravan offers superior stability and towing balance, especially over rough terrain. With a larger body size, it provides more space for families or groups, comfortably sleeping more people. Designed for serious off-grid adventures, it delivers outstanding off-road performance and durability, making it the ideal choice for those seeking comfort without limits.

    Highlights

    Features for ultimate travel comfort

    Sleeps up to 6

    Relax in spacious comfort, with layout for up to five people,perfect for laid-back family off road trips.

    148L Fridge

    Large capacity refrigerator with separate freezer drawers allows you to store your food in separate areas.

    Solar Panel

    The 800W solar panel mounted on the roof can provide electricity anytime and anywhere.

    2x 100AH Batteries

    Reliable power source with 200Ah maintenance-free batteries for extended off-grid travel.

    Shower/Toilet

    Experience the comforts of home with an integrated shower and toilet.

    Large Water Tank

    Equipped with 2 X 120L fresh water tanks, ensuring ample supply water for daily use on the road.

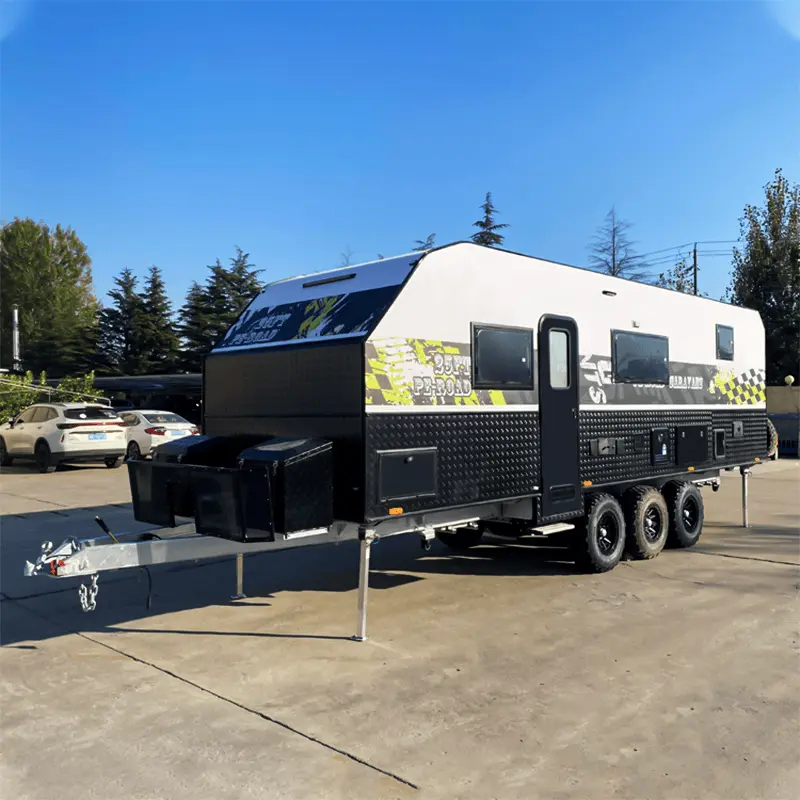

    25ft off road caravan with three axle

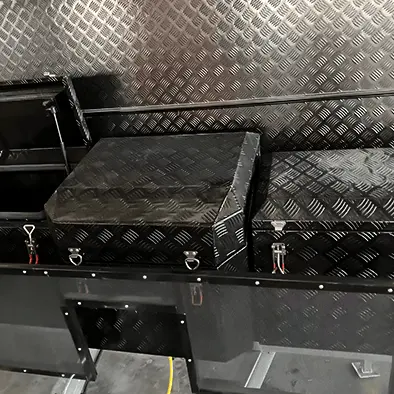

    25ft off road travel trailer toolbox

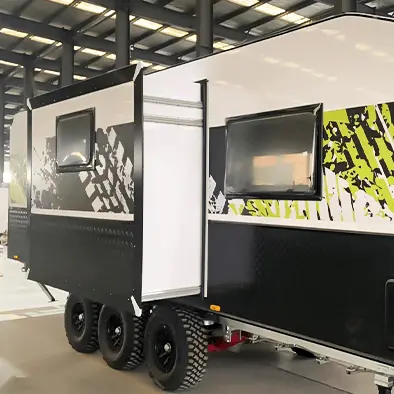

    25ft off road caravan Side expansion wall

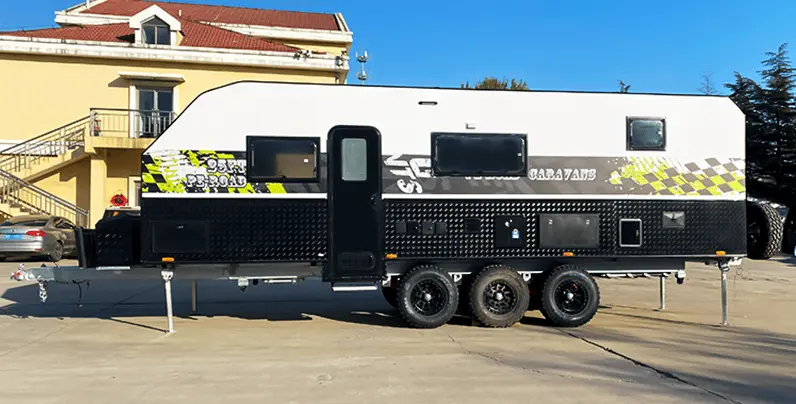

    Three axle off road caravan exterior
    Interior

    Reasonable layout for travel

    FLOORPLANS

    This model is currently only available in 25FT layout. If you need other layout sizes, please contact us for customization.

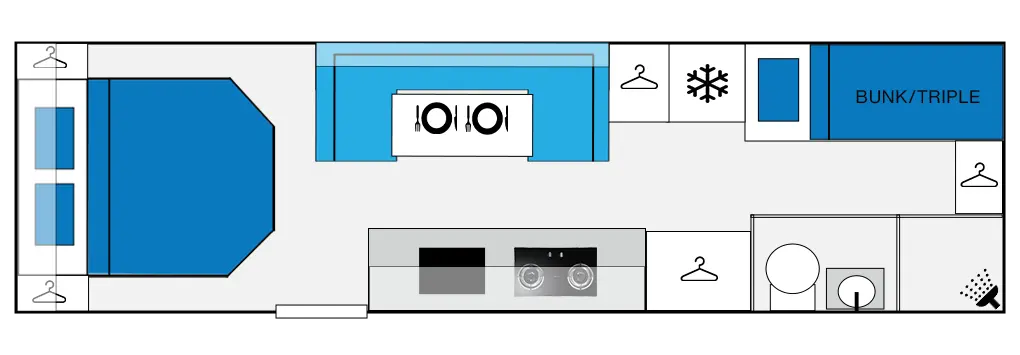

    25FT off road caravan 4-5 people floorplan
    Tare Mass: 3500(KG)
    Internal Length: 7600(MM)
    Total Length (Tow Ball to Spare Tyre): 9800(MM)
    External Width: 2350(MM)
    Internal Width: 2070(MM)
    External Height(Ground to Top of Air-con): 3200(MM)
    Internal Height: 1970(MM)
    View More

    25FT-Family

    triple axle caravan

    From 281542 CNY (41100 USD)

    Specifications

    Be prepared to break boundaries with materials, finishes and technology that lead the next frontier in premium caravanning.

    CHASSIS

    • 150MM X 50MM – Q355 Galvanised Steel RHS For Towbar
    • Proven High-strength Galvanized Chassis
    • 50Mm Ball Coupling
    • Jockey Wheel
    • 16 X 7.5 6/139.7 Aluminium Alloy Wheels Fitted With 265/75 R16 Goodride Radial All Terrain Tyres
    • Independent Coil Spring Trailing Arm Suspension With 2 X Shock Absorbers On Each Arm
    • 12″ Electromagnetic Brakes With Handbrake And Drawbar Mounted Emergency Breakaway System
    • 4 X Heavy Duty Lockable And Adjustable Drop Down Stabiliser Legs
    • 1500Kg High-Lift Scissor Jack & Integrated Jacking Points
    • Aluminium Entry Step

    EXTERIOR

    • Large Awning
    • Flat Top Toolbox On A-Frame
    • Tunnel Storage
    • 2 X 8.5KG Gas Cylinder Holders
    • 2X120L Fresh Water + 1X120L Grey Water
    • 12V Electric Marine Diaphragm Pump Water Delivery
    • City Quick-Connect Pressure Reducing Water Injection Port
    • Wall-Mounted Drop-Down Servery Table
    • Front Mounted LED Light Bar + Awning Under Light
    • Marine Grade Composite Caravan Body Including Steel Frame Construction
    • Aluminium Pattern Protection Side Skirting 75Cm

    INTERIOR

    • Indoor Modern Style Laminate Bench And Countertop, With Matte Black Sink And Faucet
    • Fiberglass Material Enclosed Shower Room
    • Tinted Ultra-Thin Double-Layer Acrylic Glass Window And Double-Layer Cassette Blinds With Screens And Blackout Curtains
    • Bathroom With 12V Exhaust Fan And LED Lighting
    • High-Quality Leather Lounge Seating
    • High-Quality Environmentally Friendly Vinyl Floor
    • Top Cabinet With Strip Lights
    • Toughened Residential Grade Hinge Assembly

    APPLIANCES

    • Dometic Roof-Mounted Air Conditioner With Heating
    • FOGGTI Gas Instant Water Heater
    • 148L High-end 12V Compressor Refrigerator
    • Built-In 20L 800W Microwave
    • Hot/Cold External Shower
    • 2.4GHZ Digital Wireless Rear View Camera + 7″ Portable Monitor
    • Stereo Head Unit With Internal & External Speakers
    • 12V Range Hood
    • Induction Cooktop
    • 12V Sirocco Fans

    ELECTRICAL

    • Intelligent Integrated Control System
    • 800W Solar Panels
    • MPPT Solar Control
    • Battery Monitor + 200AH Maintenance-Free Battery
    • 12V 3000W Pure Sine Wave Inverter, Integrated Inverter Charging Machine
    • Internal 12V LED Lighting Throughout
    • External 12V LED Lighting Throughout, Awning Side White And Yellow (Bug Light) Wall Lighting, Position Markers, Indicator & Stop/Tail Lights
    • 7-Pin Flat Trailer Connector
    • 12V Accessory Sockets
    • Dual USB Charging Ports (1A & 2A Split)
    • TV Outlet
    • 240V GPOs
    • Reading Light With USB Charging Function

    Optional

    • Spare Tire + Rear Bumper Bracket
    • 22-Inch Smart TV + Bracket + Antenna
    • Indoor Two Burner Stove With Glass Cover
    • Dometic 4-Burner Stove + Single-Layer Oven
    • Outdoor Pull-Out Kitchen (2-Burner Stove + 1 Sink)
    • Australian Standard Gas Pipeline (Optional For Australia And New Zealand)
    • 35L Outdoor Refrigerator
    • Dometic Dust Removal Fan
    • 3KG Washing Machine
    • Skylight
    • 2KW Diesel Heater
    • 400AH Life Pro4 Li Battery
    • DC-DC Charging + MPPT Integrated Machine
    • Electric Side Wall Extension 200*80CM

    Enquire about the off road caravan Today

    Enquire

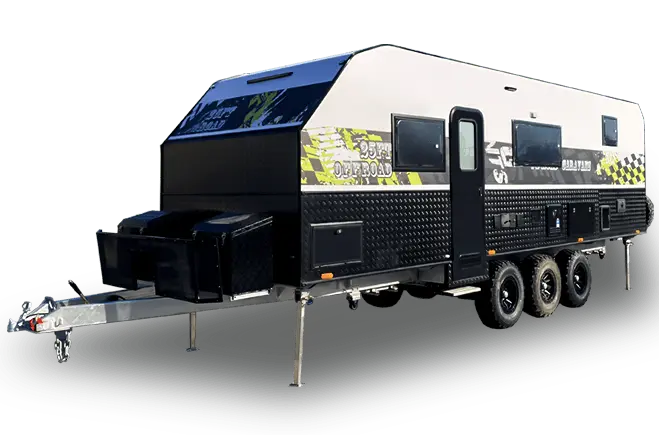

    large australia off road caravan rv for sale

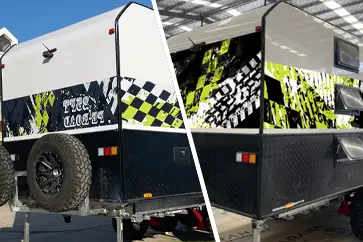

    caravan color custom
